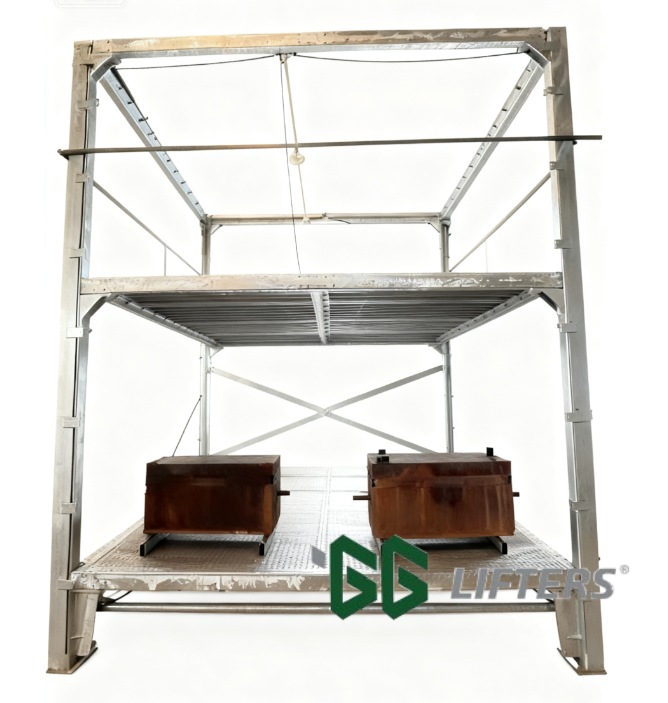

Underground 2 Post Double Wide Parking Lift

OverView：

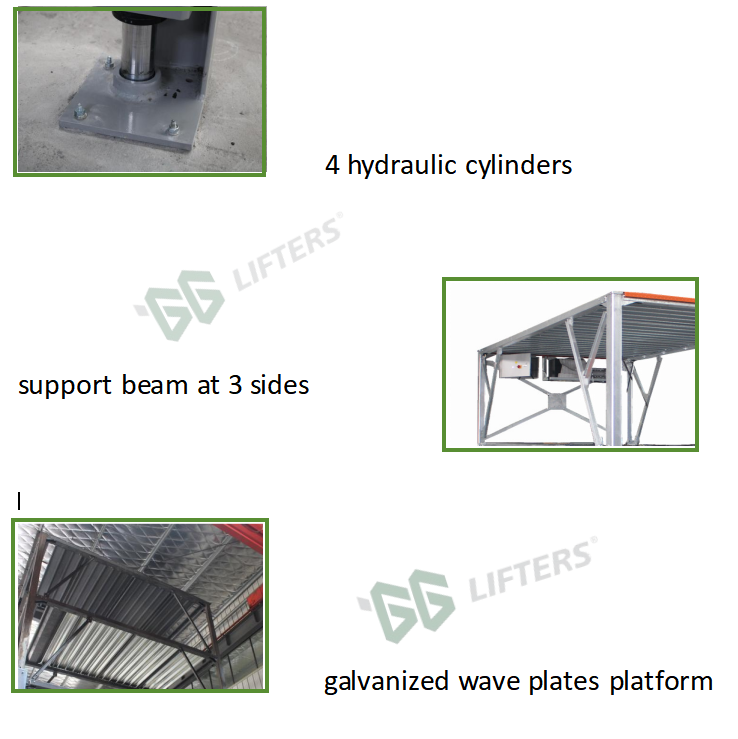

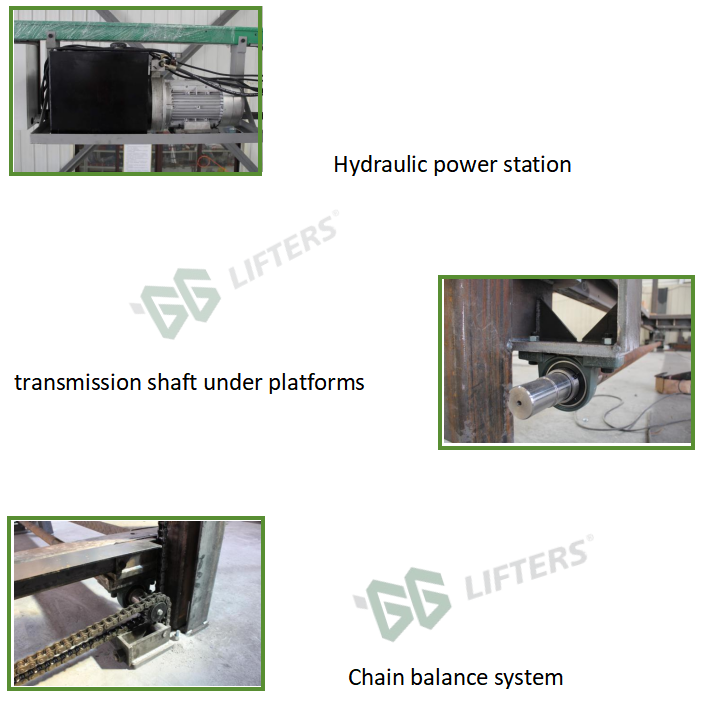

1.    Hydraulic driven through 2 ea hydraulic cylinders system.

2.    Directly park or pick up the car at any level independently.

3.    Galvanized wave plates platforms, cold bending and strong pressure & humidity resistance.

4.    Front and back wave plates are removable for easy access to the pit ground floor in case of emergency.

5.    Tire stoppers in each platform to ensure correct placement of the car.

6.    Top platform is used for parking & drive through.

7.    Limit switch in every level to stop platforms at predefined heights.

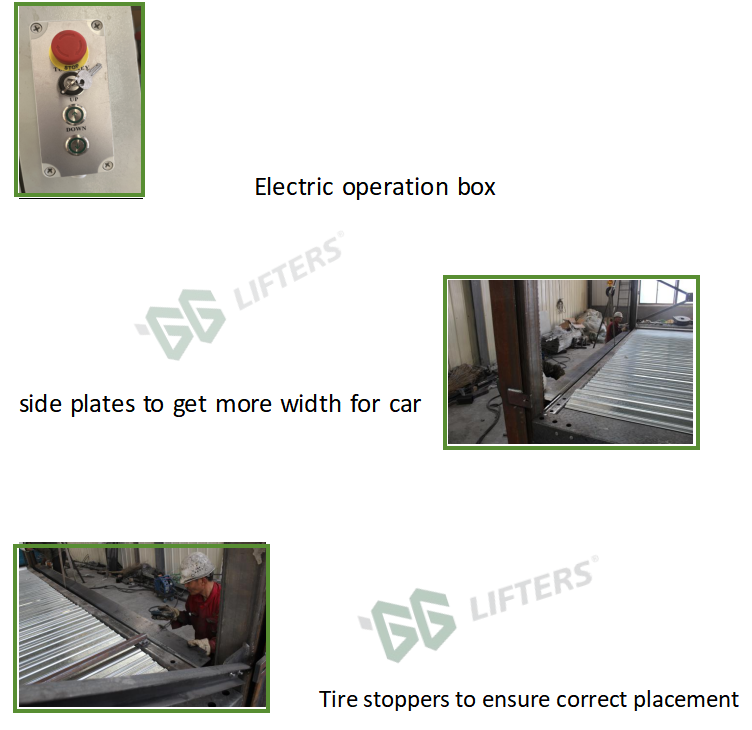

8.   Electric operation box is equipped with “Dead Man” Push Buttons (UP/Down) & Emergency and ON/ OFF “Key Switch “where the user can’t take it out unless the lift is fully down inside the pit.

9.    Units are designed and built according to EN1493: 2010 and EN14010: 2003 standards.

10.  Steel parts are sandblasted then anti-corrosion primer painted and top finish color coated.

Product parameters：
